Connecting Various Networks Configuring Virtual Networks in Datacenters

Through a Software-Defined Data Center(SDDC)-based shared network infrastructure at datacenter in a Samsung Cloud Platform region or in an on-premises datacenter, Cloud LAN-Data Center enables connection between various networks including server, WAN Edge and CX(Cloud eXchange).

Overview

  • Fast Network Connection

    When configuring a network environment in an Samsung Cloud Platform region or on-premises data center, the SDDC-based infrastructure helps configure a data center network tailored for enterprises both promptly and securely.

  • Cost Efficiency

    Logical configuration of virtualized infrastructure and its optimized design help establish a customer-dedicated network, removing the need to configure a physical network infrastructure. A virtual network environment helps minimize the cost of configuring a physical environment such as network hardware, data center rack, and cabling.

  • Ensure Operation Continuity

    Cloud LAN-Data Center provides an operating environment for each enterprise, helping to maintain existing configuration settings required by each on-premises environment such as network security policy, IP system and network protocol.

  • Flexible Network Environment

    By separating the edge node (External network connection), service node (On-premise equipment connection), and computing node (Server connection) within the SDDC-based network infrastructure, it can not only accommodate network security hardware and network equipment requiring physical installation, but also virtualized network devices.

01

04

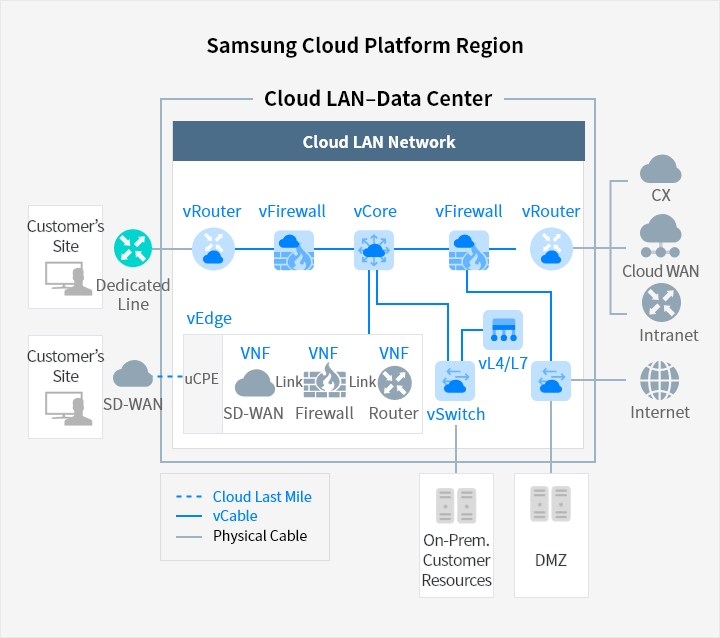

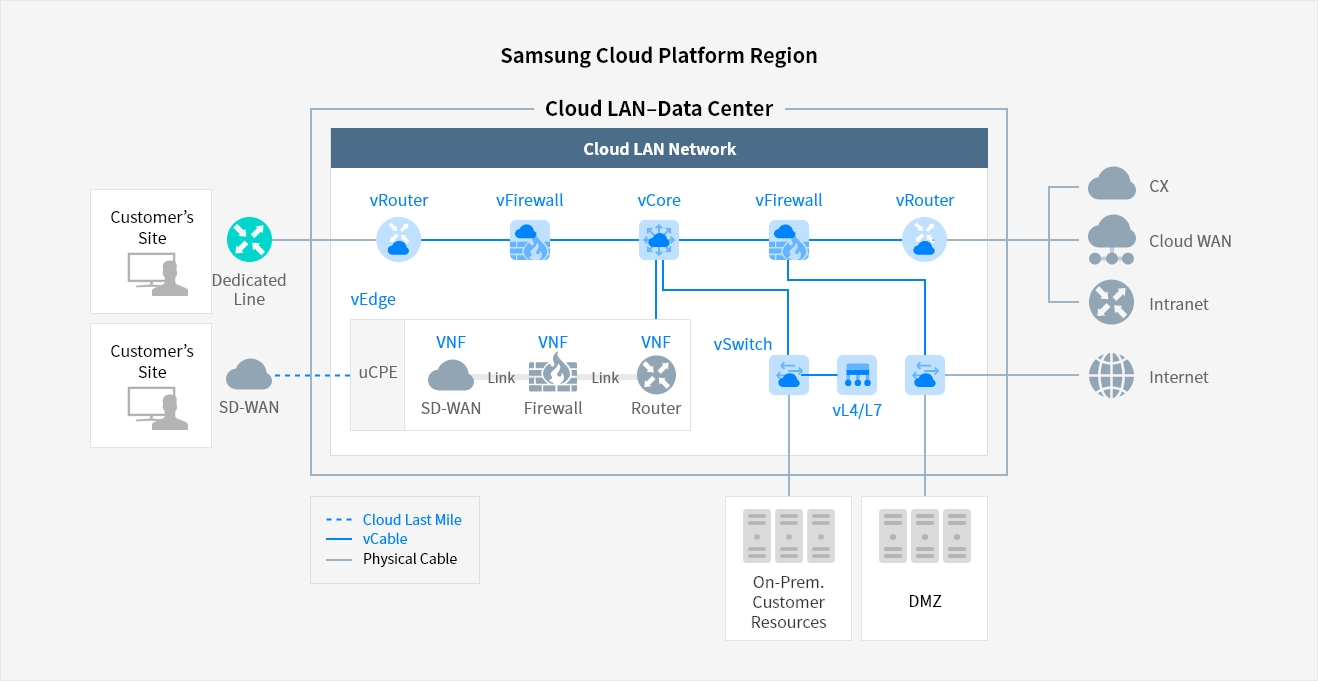

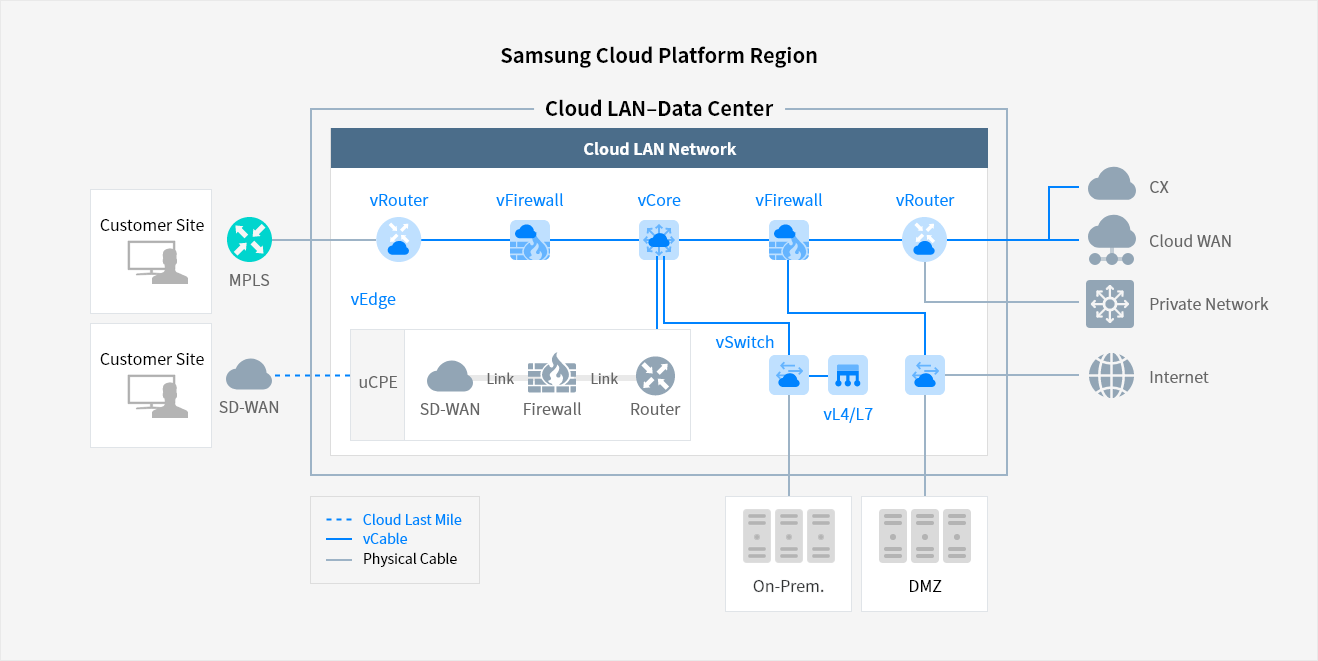

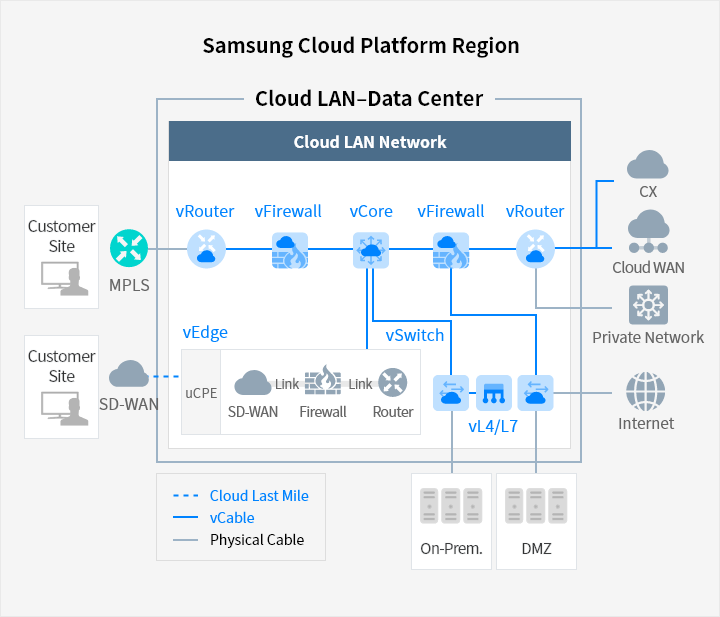

Service Architecture

Samsung Cloud Platform Region
Cloud LAN-Data Center
Cloud LAN Network : vRouter →(vCable)→ vFirewall →(vCable)→ vCore, vCore →(vCable)→ vEdge, vCore →(vCable)→ vSwitch →(Physical Cable)→ On-Prem.Customer Resources, vCore →(vCable)→ vSwitch →(vCable)→ vL4/L7, vCore →(vCable)→ vFirewall →(vCable)→ vRouter →(vCable)→ [CX/ Cloud WAN], vCore →(vCable)→ vFirewall →(vCable)→ vRouter →(Physical Cable)→ [Intranet], vFirewall→(vCable)→vSwitch →(Physical Cable)→ DMZ, vFirewall→(vCable)→vSwitch →(Physical Cable)→ Internet * vEdge : uCPE [VNF SD-WAN -link- VNF Firewall -link- VNF Router]
Customer's Site → Dedicated Line →(Physical Cable)→ Cloud LAN Network's vRouter Customer's Site → SD-WAN →(Cloud Last Mile)→ Cloud LAN Network's vEdge

Key Features

  • Cloud LAN network
    1. A virtual space dedicated for network configuration that is logically isolated within Cloud LAN-Data Center infrastructure.
  • Services provided by Cloud LAN network
    1. vRouter : Virtual resource for dedicated circuit connection (L2, L3)
    2. vSwitch : Virtual resource for Appliance connection and VLAN provision
    3. vFirewall : Virtual firewall for infrastructure protection created in Cloud LAN Data Center
    4. vL4/L7 : Virtual L4/L7 switches for traffic load balancing within the Cloud LAN-Data Center
    5. vCore : Virtual resource for full mesh connection
    6. vCable : Virtual cables for connection through routing between virtual resources
    7. Interface : Physical interface that connects H/W and the circuit to vDevice
    8. vEdge : uCPE-based, virtualized Edge resources that accept various VNF including routers, accelerator, firewalls, etc.(can be deployed through SR)

Pricing

    Please contact us via [Service Portal > Support > Contact Us] for billing information.
